SOLAR
CELLS The use of solar energy means that an on/off switch and change
of battery are no longer needed.
VISIBILITY Automatically
darkens within a fraction of a millisecond to the correct level of protection
with arc ignition.
WATER-RESISTANT The twisty
cartridge is protected against humidity and moisture (accdording to
IP 67: 30 min., 1 m depth.)
|

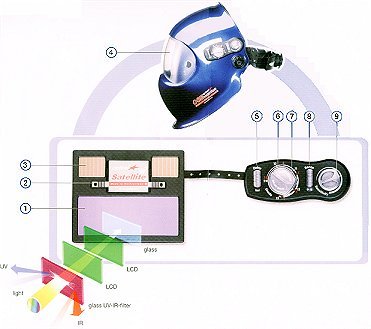

1 Eye protection
|
2 Adjustable sensor frame
|
Several LCDs provide protection. Special filters provide you with permanent
|
Eliminates the effects of ambient light. By moving the sensor frame the angle of the direction will open up, necessary for over head welding
|
3 Power supply
|
4 Spherical cover lens
|
optrel OSE Satelite has a proven solar cell technology which ensures the supply of power.
|
The front cover lens equipped with an elastic gasket prevents the infiltration of gas, fume and particles
|
5 Delay switch
|
6 Shade level controller
|
Using this sliding switch, the opening delay can be conveniently adapted to your requirements.
|
This knob can be used to select the shade level required: selections can be made in the two ranges between DIN 5 and 9 or DIN 9 and 13. Therefore, a wide range of applications is opened up.
|
7 Grinding
|
8 Range of shade levels
|
This push button can be used to change into grinding mode (DIN 4) without taking off the helmet. (Automatical reset after aprox. 10 minutes.)
|
This sliding switch can be used to select the range of shade levels, i.e. between DIN 5 and 9 or Din 9 and 13.
|
9 Grinding
This push button can be used to change into grinding mode (DIN 4) without taking off the helmet. (Automatical reset after aprox. 10 minutes.)
|
|
|
|
